How to create table structure in Access 365

Before you start to configure your database connection in Ozeki 10 SMS Gateway, you need to create two database tables in the Microsoft Access 365: "ozekimessagein" and "ozekimessageout". From this guide you can learn how these tables should be created.

Download the database used in the example: ozeki_database.accdb

After opening an blank database file, click the View button in the upper left corner to switch to the Design view of the table. A window will appear where you need to enter the name of the table. In this case, it will be ozekimessagein (Figure 1).

change table to design view
Figure 1 - Change table to design view

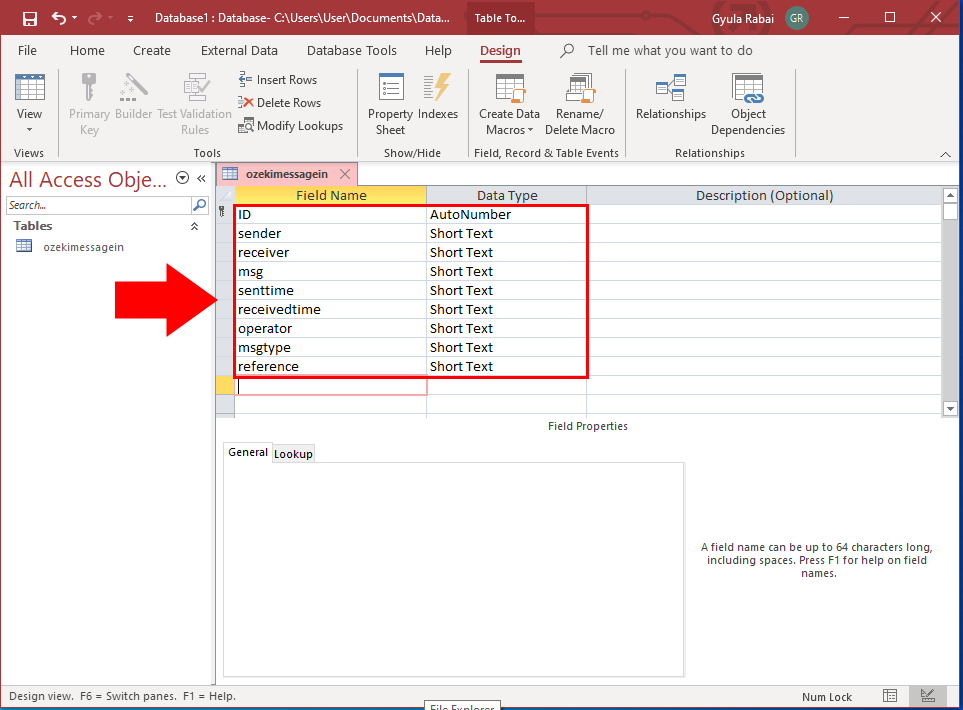

Next, enter the Field Names shown in Figure 2 with the appropriate Data types.

create ozekimessagein table
Figure 2 - Create ozekimessagein table

You can save the table settings by right-clicking on the table name as you can see in the Figure 3.

save database table
Figure 3 - Save database table

You will also need another table to use Ozeki SMS Gateway. Select the Creat menu and within it Table as shown in Figure 4.

create new table
Figure 4 - Create new table

Click again the View button in the upper left corner to switch to the Design view of the table. A window will appear where you need to enter the name of the table. In this case, it will be ozekimessageout (Figure 5).

change new table to design view
Figure 5 - Change new table to design view

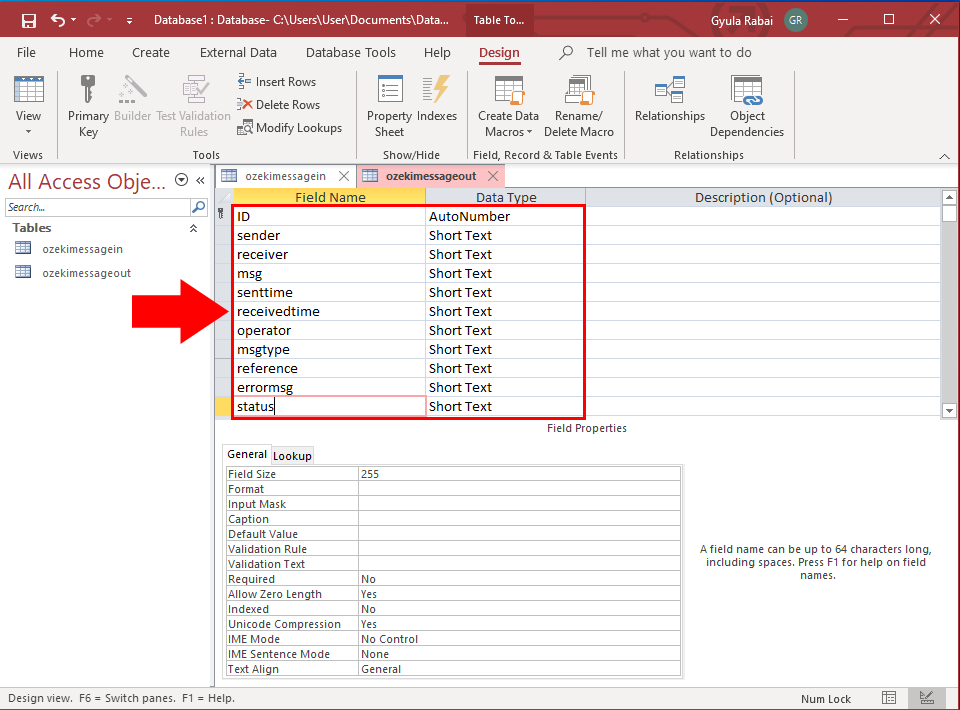

Here, enter the Field Names shown in Figure 6 with the appropriate Data types.

create ozekimessageout table
Figure 6 - Create ozekimessageout table

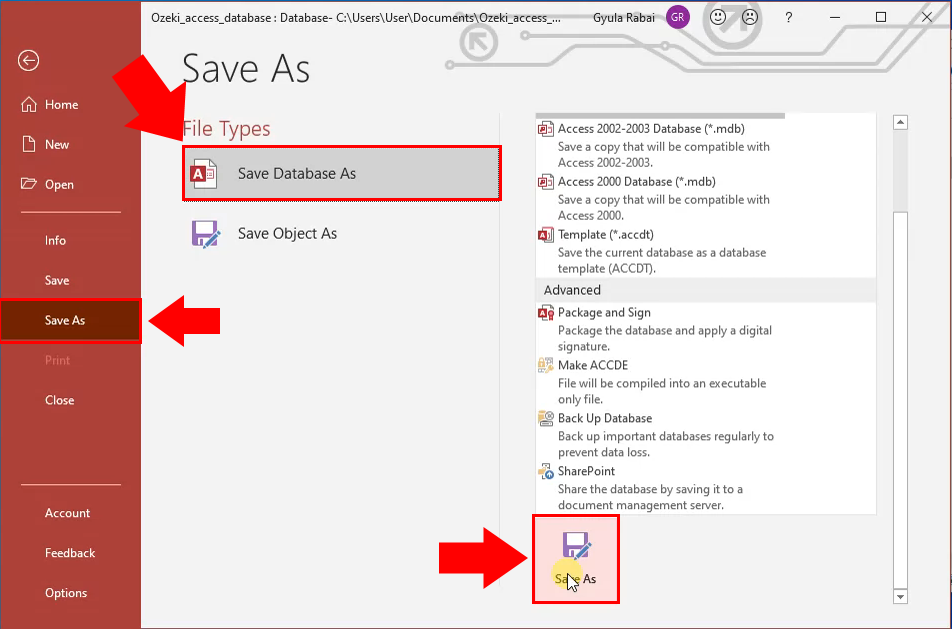

Finally, save the entire database file on the File menu. Select Save as section and then Save Data as option. You can then use the Save as button to save the file with the file name of your choice (Figure 7).

save database file
Figure 7 - Save database file
